The Forced Venturi Kit includes a Mazzei Injector and the components to complete the installation. The Mazzeu injectors offer a unique design with no moving parts to provide a trouble-free system. Certain miscellaneous parts should be removed and discarded before installation, including: the 3/4†Nozzle and the Check Valve Assembly.
The Forced Venturi Kit can be used as a replacement part of the Accu-Tab Series® 100 chlorinator units. Component #: 9500154

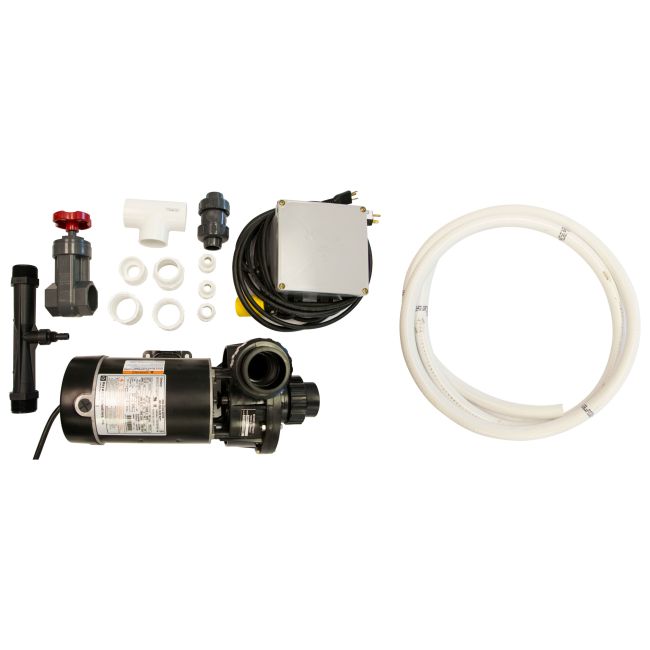

Forced Venturi Kit - 9500154 consisting of:
1-1.5†Mazzei 1587
2- Female Adapter 1 1/2" (435-015)
1- Male Adapter 3/4" (436-007)
2- 1/2" x 3/4" Male Adapter Red. Sch 40 (436-074)
1- 3/4" Cepex Ball Check Valve
1- Tees 1 1/2" (401-015)
1- Bushing SxS 1-1/2 X 3/4" (437-210)
1- 1 1/2" Gate Valve EPDM (GVG-1500-S)
1- Male Adapter 1 1/2" (436-015)
1- 1 HP Hayward Pump Component # 9500241 (PAPP100)
