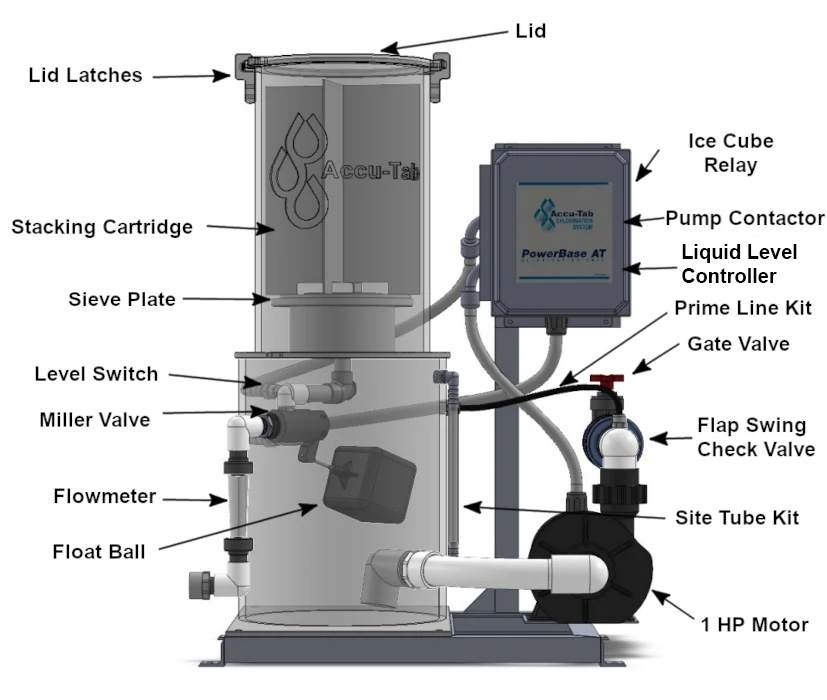

Accu-Tab® Powerbase 1030 Unit Diagram
The Accu-Tab® Powerbase 1030 Unit Parts Diagram is found below. The text on this diagram is interactive; upon clicking on the part name that you need, you will be redirected to the exact replacement model on our website. If you have questions about this diagram, or need parts for an older Accu-Tab® 1030 that doesn't look like the drawing, please reach out to us via our contact form -- we will be happy to get you pointed in the right direction.
Parts List:
Accu-Tab® PowerBase 1030 Lid - 9500206
1030 Spiral Sieve Plate - 95011120
Side-Mounted Level Switch - 9500084
3/4" Miller Float Valve Assembly - 9500095
PurAqua Square Float - 9500157
Hayward Pool Pump / Motor - 1.0 HP - PAPP100
Level Sight Tube Kit - 9500369
1-1/2" Clear PVC True Union Swing Check Valve - 9500077
Spears 1" Socket End Gray Gate Valve
R2-120 Liquid Level Control Relay
